Surface belt grinding machines TYPE BS

Surface belt grinding machines TYPE BS

Surface belt grinding machines – dry grinding

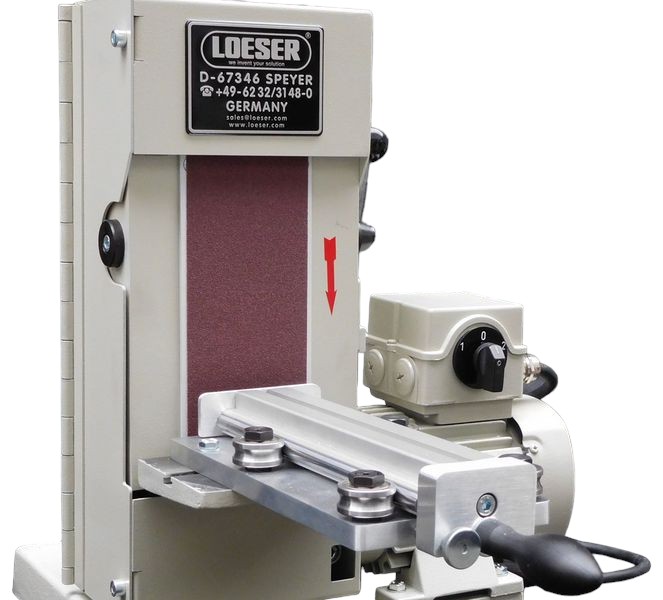

  • LOESER surface belt grinding machines are supplied as a table model, optionally as a stand model.
  • The surface grinding table can be locked horizontally or vertically as required.
  • The built-up angle table is rigid in the normal version and is at right angles to the surface grinding table. On request, this angle table can be supplied adjustable from -10 to +45°. When ordering an additional angle stop for this angle table, a T-slot is milled.
  • As standard, these machines have a belt protection plate as protection against accidental contact.
  • Closed belt protection boxes are available for all surface belt grinders. This effectively holds back the dust generated during grinding. On the drive roller side, the belt protection boxes are funnel-shaped and have an extraction nozzle for connection to a central extraction system.
    When grinding aluminum and aluminum alloys, it is mandatory to use a belt protection box made of non-sparking material. That is why aluminum belt protection boxes can be supplied for all machines.
  • Suction hoses 75 mm Ø, 100 mm Ø, 150 mm Ø available in any desired length
Flächenbandschleifmaschinen TYP BS - Trockenschliff
Flächenbandschleifmaschinen - Trockenschliff
  • Technical specifications
TypeBS 75BS 200BS 300
Motor0,55 / 0,7 kW1,5 / 2 kW3 kW
Number of revolutions1450/2900 U/min1450/2900 U/min1450 U/min
Cutting speed8/16 m/sek10/20 m/sek15 m/sek
Diameter100 mm132 mm200 mm
Sanding belt950 x 100 mm1500 x 200 mm2000 x 300 mm
Suction nozzle Ø (mm) closed. belt protection75 mm Ø100 mm Ø150 mm Ø
Dimensions in mm
TypBS 75BS 200BS 300
a380430730
b450545545
c Ø141414
d118180255
e240290590
f200200200
g505050
h866905910
k503767980
l225410530
m410620770
n184324458
o120914721622

Surface belt grinding machines – wet grinding

  • LOESER surface belt grinding machines for wet grinding are manufactured with reinforced drive motors.
  • All machines have a closed belt protection box as standard, which holds back the spray water. The large water collection tray collects the spray water and directs it back into the water tank through the return connection. An attachment filter holds back the abrasion and impurities and thus guarantees the maximum service life of the spray water.
    It is essential to add anti-corrosion agents to the spray water so that the function of the machine is not impaired.
  • Like the other models, LOESER surface belt grinding machines with wet grinding equipment can be equipped with inclinable angle tables and, if required, with an angle stop.
  • When grinding aluminum and aluminum alloys, it is essential to order an aluminum belt protection box, as well as a pressure switch that shuts down the machine if there is a lack of water supply.
  • According to the regulations of the trade association, these two points must be observed for new machines to be purchased.
Flächenbandschleifmaschinen - Nassschliff
  • Technical specifications
TypBS 75-WBS 200-WBS 300-W
Motor1,1 kW2,5 / 3 kW4 kW
Number of revolutions2900 U/min1450/2900 U/min1450 U/min
Cutting speed16 m/sek10/20 m/sek15 m/sek
Diameter100 mm132 mm200 mm
Sanding belt950 x 100 mm1500 x 200 mm2000 x 300 mm
Tub dimensions length x width730 x 9901050 x 8501400 x 1200
