Polishing Machines Type SMG

Polishing Machines Type SMG

Polishing motors 2 versions

SMG 56 with internal motor Spindle height 600 mm, low column for sitting work

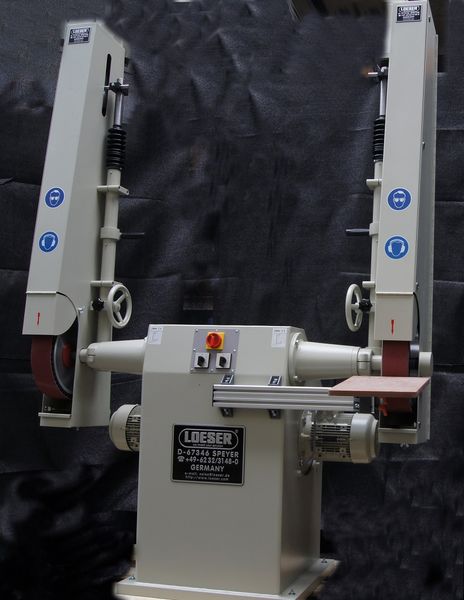

SMG 58 with external motor Spindle height 1,000mm, high column for standing work

  • with 2 add-on motors
  • split spindle shafts
  • V-belt drive with 3 fixed speeds
  • can be switched separately
  • Frequency converter option
  • Belt length 3,000 mm. Special dimensions on request

Accesories:

  • Attachment suction tube Ø A 200 – A 600 mm
  • Belt sander arm EB-3S
  • with steel or aluminum belt protection box
  • Mounting hoods for disc diameters A200-A500

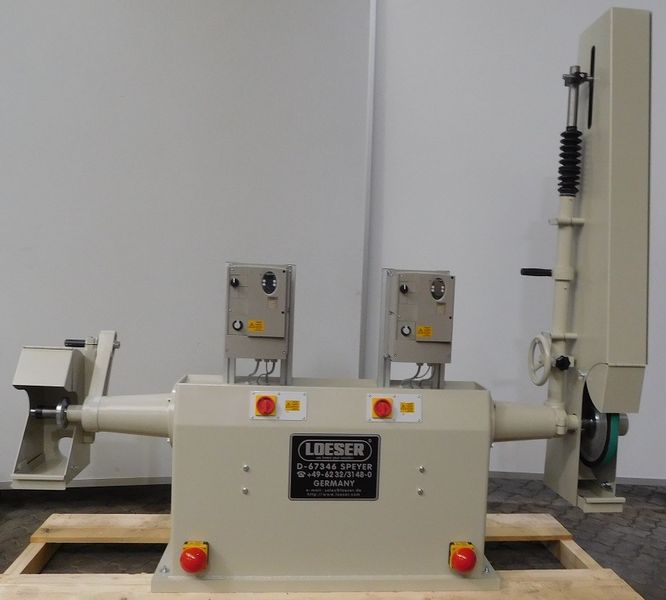

Used / refurbished polishing machine SMG 56

  • As with new machines, attachments can be added later
  • Same accessories available as new machines

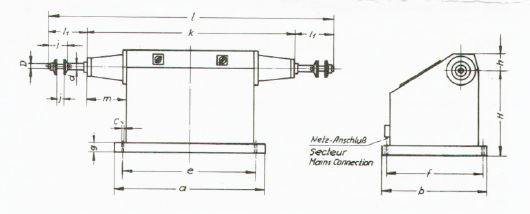

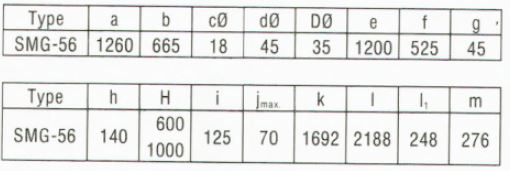

TYPE
abc ⌀d ⌀D ⌀efghHi j (max)kll₁m
SMG 561260665184535120052545140600/1.0001257016922188248276
SMG 5878066518453572052545140600/11.0001257011921688248276
  • Technical specifications
  • Accessories
TypeSMG 58 with external motorSMG 56 with internal motor
Rating kW2,2/2,2
3,0/3,0
4,0/3,0		2,2/2,2
3,0/3,0
4,0/4,0
5,5/5,5
7,5/7,5
rpm2 x 3stufig fix
1.500 – 2.900
oder stufenlos		2 x 3stufig fix
1.200 – 3.500
Spindle height
Weight		600 mm
300 kg		600 mm
310 kg
Spindle height
Weight		1000 mm
345 kg		1000 mm
360 kg
TypSMG 58SMG 56
Abrasive belt head for belt mmEB 3-S
3500 x 100 max.		EB 3-S
3500 x 100 max.
Polishing centre
Polishing mandrel		M 16M 16
Extraction hoods dia400
500		400
500
600
