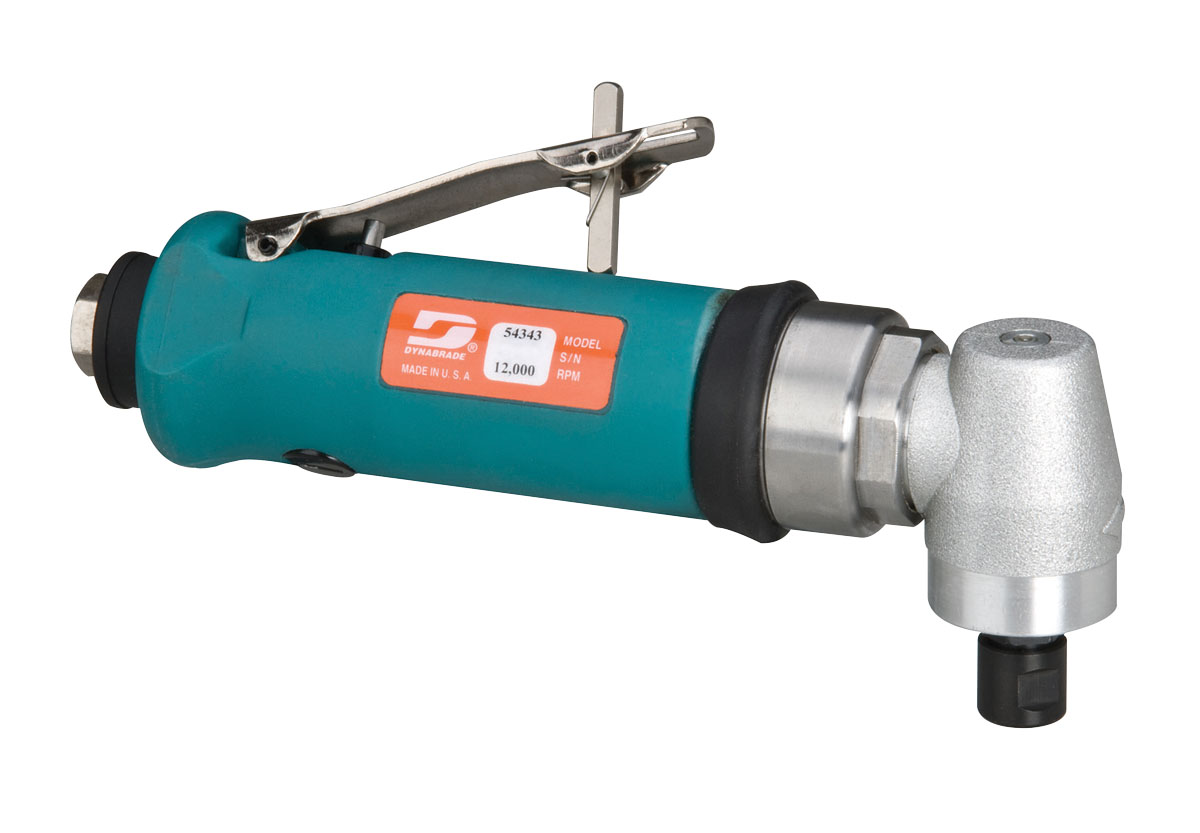

0.7 hp Right Angle Die Grinders – Composite Dynabrade 54343, 54347, 54359, 54363

0.7 hp Right Angle Die Grinders – Composite Dynabrade 54343, 54347, 54359, 54363

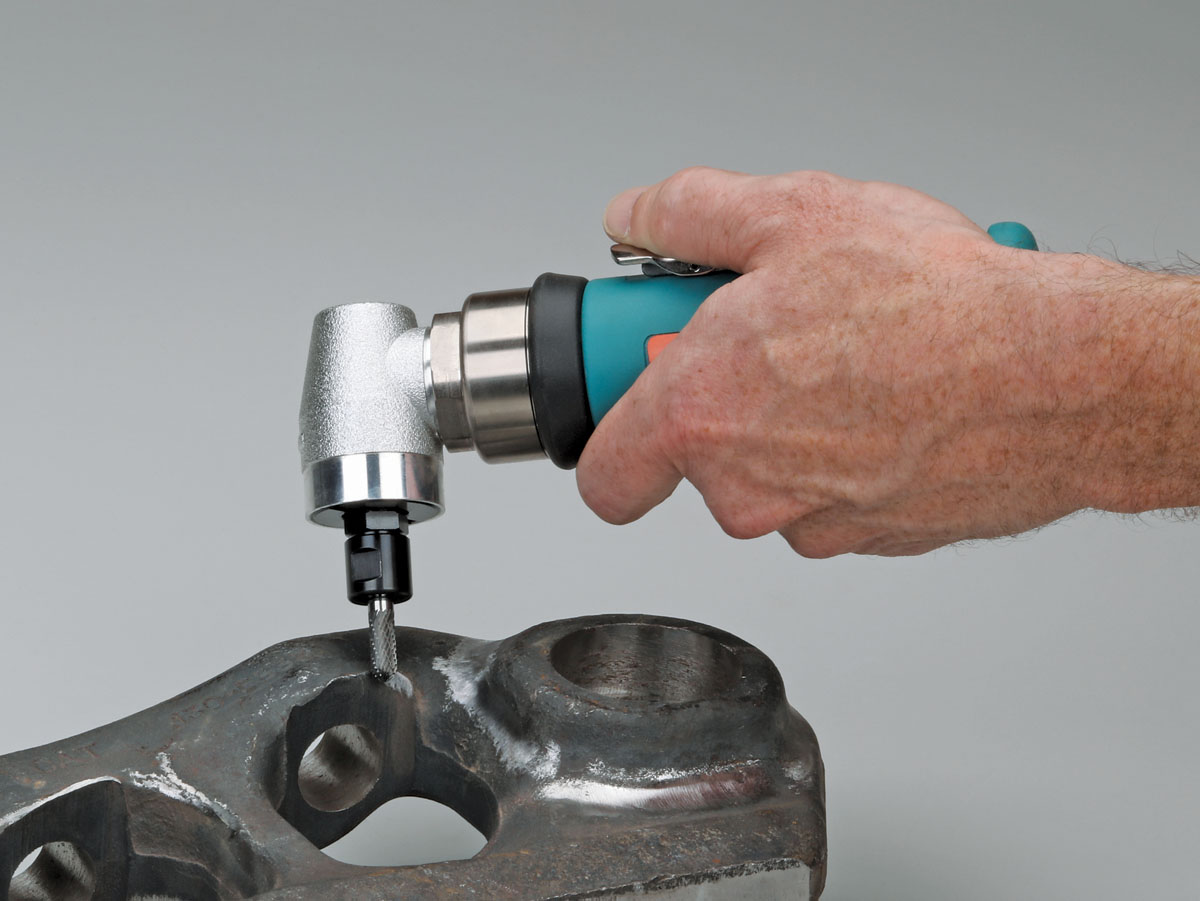

  • Dynabrade’s .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!
  • All models include 1/4″ and 6 mm Collet Insert
  • Thermal-insulated handle reduces cold air transmission to operator
  • Tools include lightweight aluminum head
  • Safety-lock throttle lever prevents accidental start-up of tool
  • Technical specifications
  • Data sheets and spare parts
Model number54343543475435954363
Collet size1/4″ & 6 mm1/4″ & 6 mm1/4″ & 6 mm1/4″ & 6 mm
Motor hp (W).7 (522).7 (522).7 (522).7 (522)
Motor RPM12,00012,00018,00018,000
ExhaustRearRearRearRear
Max. Air Flow SCFM (LPM)38 (1076)40 (1133)41 (1,161)40 (1133)
Air inlet thread1/4″ NPT1/4″ NPT1/4″ NPT1/4″ N41 (1,161)PT
Hose inner diameter Inch (mm)3/8″ (10)3/8″ (10)3/8″ (10)3/8″ (10)
Length Inch (mm)7.9 (200)11-1/4″ (287)7-7/8″ (200)11-1/4″ (287)
Height Inch (mm)2.9″ (77)2.9″ (77)2.9″ (77)2.9″ (77)
Sound Level dB(A)80807980
Weight0.98 kg1.37 kg0.98 kg1.36 kg
Instruction manual and spare parts list Dynabrade 0.7 HP angle grinder with collet 54343, 54359 (PDF)
Operating instructions and spare parts list Dynabrade 0.7 HP angle grinder with collet 54347, 54363 (PDF)
