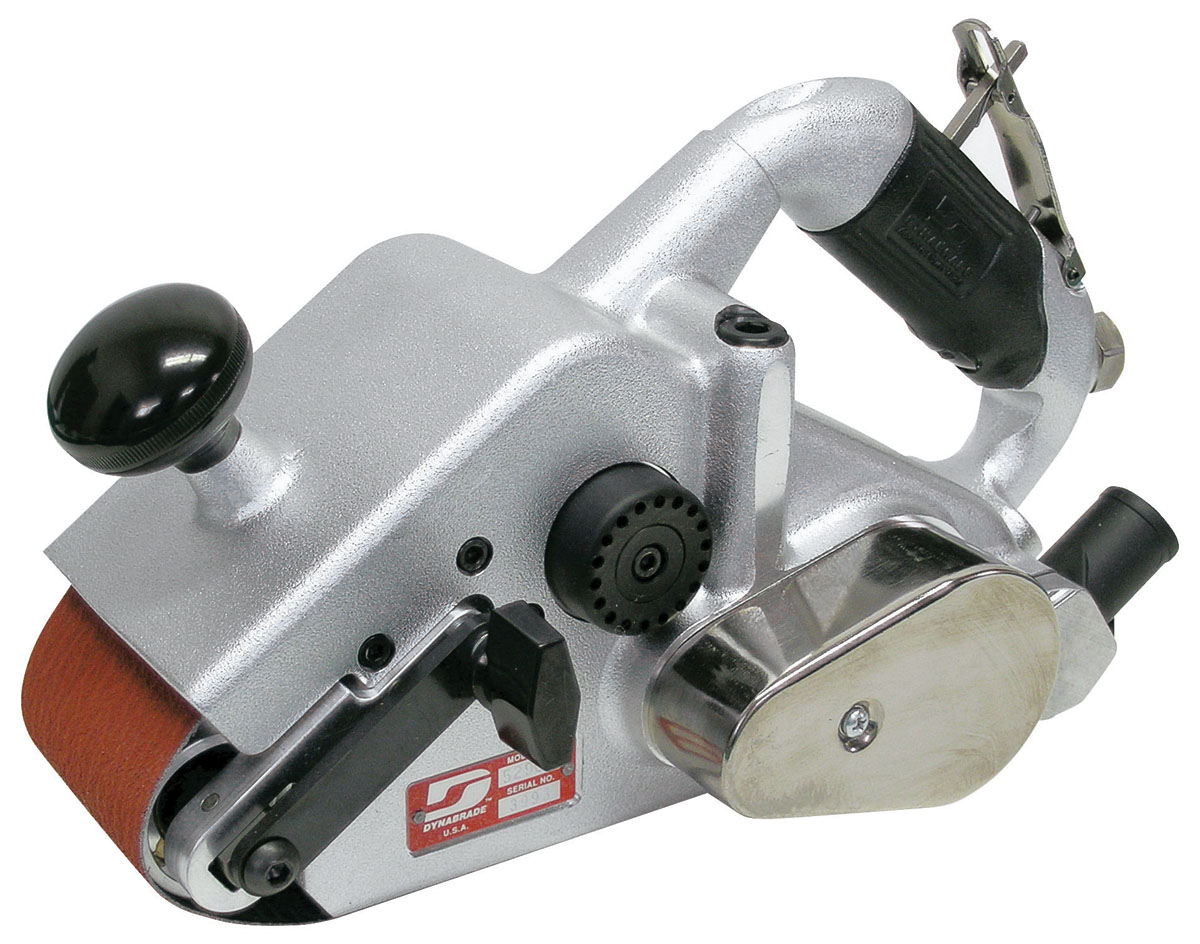

Pneumatic belt grinding machine Dynabrade 52900

test

Pneumatic belt grinding machine Dynabrade 52900

  • Ideal for surface leveling, graining and finishing. Heavy-duty 1.3 hp sander (3,500 RPM) powers 3″ x 24″ abrasive belts, for aggressive material removal on metal and wood
  • Toggle switch offers simple one-step belt tensioning. Pistol-grip handle and top control knob allow enhanced operator control
  • Machining directly on the grinding plate as well as directly on the contact roll
  • With pneumatic belt tensioning
  • Easily adjustable tracking of abrasive belt. Tool works well with non-woven nylon belts
  • Vacuum connector directly on the machine
  • High-torque motor 1,000 W
  • For grinding belts and Scotch Brite belts 75 x 610mm
  • Including safety lever

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: Available at short notice

Error: Contact form not found.

Request a quote

Technical specifications

Model number52900
Motor capacity1000 W
Revs. per min.12.000
Noise level88 dB(A)
Air consumption1400 L/min.
Weight5,7 kg
Length337 mm
Height181 mm

Data sheets and spare parts

Operating Instructions and Parts List Dynabrade Air Belt Sander 52900 (PDF)
