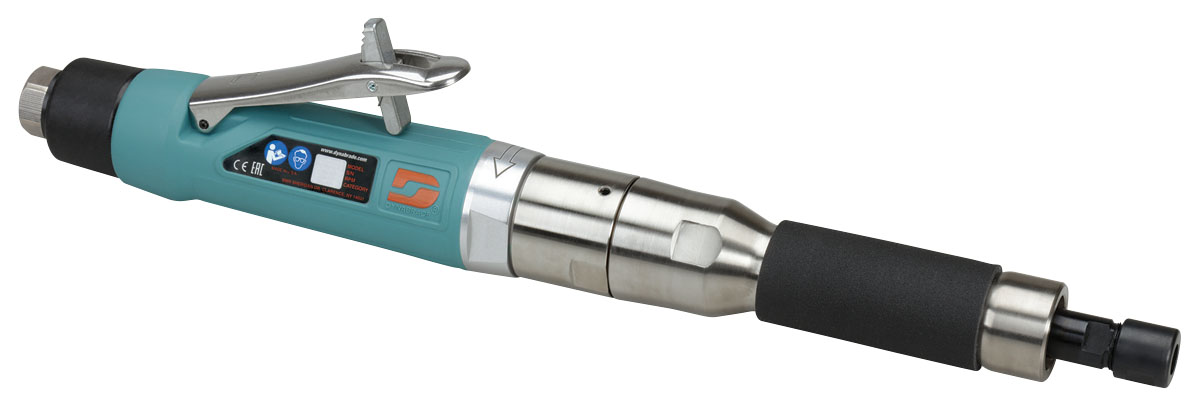

Pneumatic straight grinding machine Dynabrade 53521

Pneumatic straight grinding machine Dynabrade 53521

Of extended design

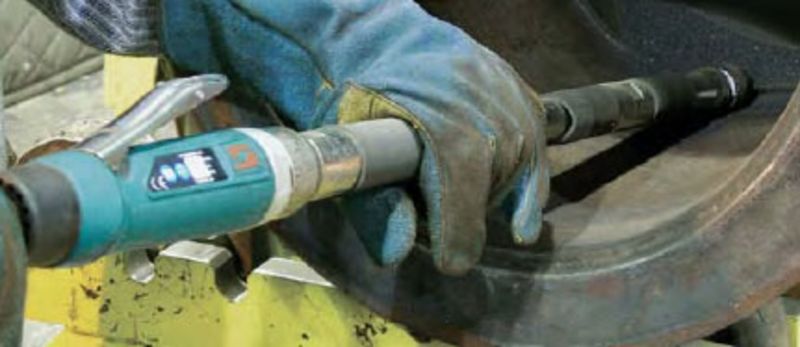

The machine was developed to allow for working on spots that are difficult to access. Due to its sturdy design, the machine is suitable for continuous operation as well as for heavy grinding and milling jobs.

  • Exhaust air at the rear end
  • Extremely high torque in case of gear reduced machines (3,400 revs./min)
  • As standard, all models are equipped with safety levers.
  • The handle is plastic covered to reduce vibrations and the generation of cold.
  • Constant speed even when under load
  • Use of grinding stones, in addition collet chuck mounting 50015 for 3, 6, 8, and 10mm optionally available
  • Technical specifications
  • Data sheets and spare parts
Model number535215352253523
Motor capacity744 W744 W744 W
Number of revolutions per min.3.4003.4003.400
Noise level80 dB(A)80 dB(A)80 dB(A)
Air consumption1250 L/min.1250 L/min.1250 L/min.
Weight2,5 kg3,5 kg4,4 kg
Length502 mm714 mm927 mm
Diameter48 mm48 mm48 mm
Operating instructions and spare parts list Dynabrade pneumatic straight grinder 53521, 53522, 53523 (PDF)
  • Technical specifications
  • Data sheets and spare parts
Model number535315353253533
Motor capacity744 W744 W744 W
Number of revolutions per min.18.00018.00018.000
Noise level84 dB(A)84 dB(A)84 dB(A)
Air consumption1100 L/min.1100 L/min.1100 L/min.
Weight2,2 kg3,1 kg4,0 kg
Length467 mm679 mm892 mm
Diameter48 mm48 mm48 mm
Operating instructions and spare parts list Dynabrade pneumatic straight grinder 53531, 53532, 53533 (PDF)
