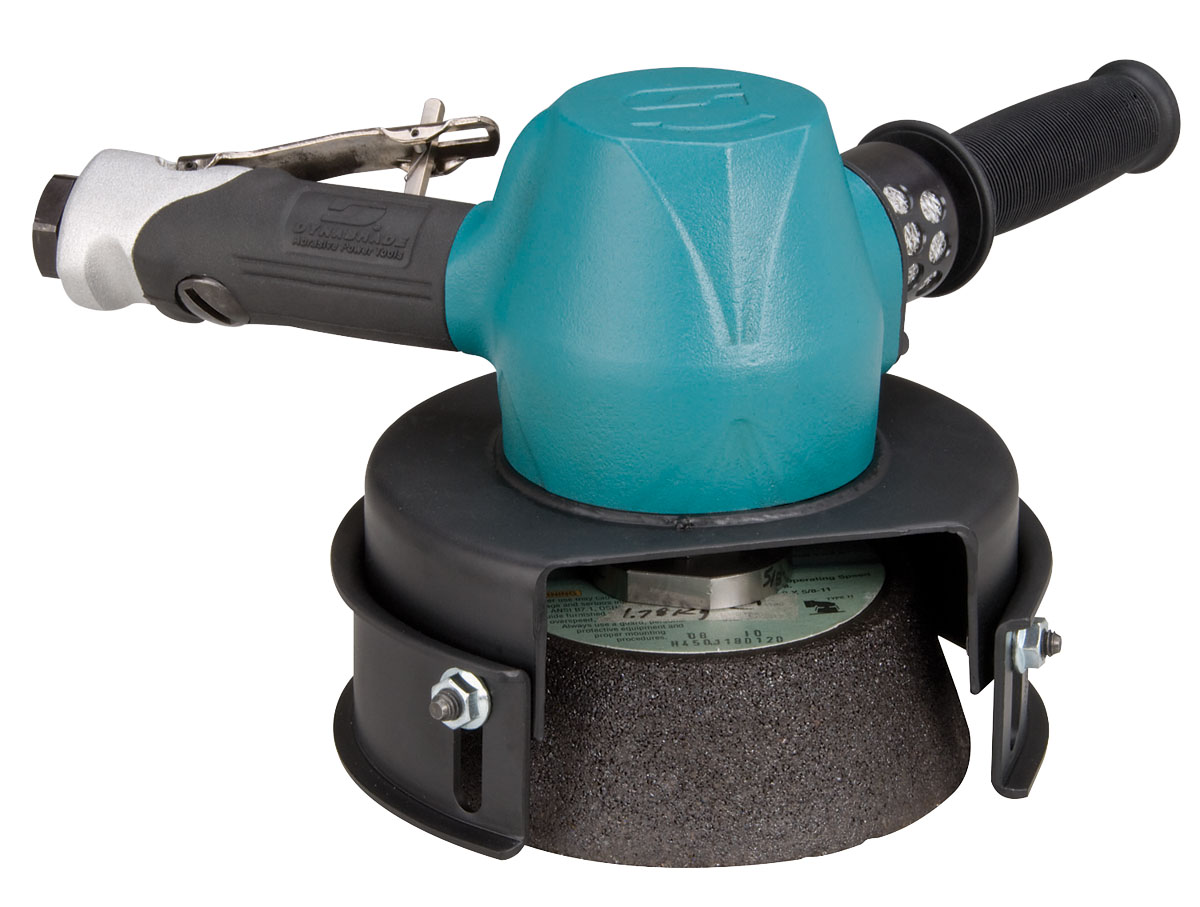

Vertical Cup Wheel Grinder Dynabrade 53233, 53243

Vertical Cup Wheel Grinder Dynabrade 53233, 53243

  • Ideal for heavy-duty applications in foundries and shipyards. Fast stock, rust and scale removal.
  • Governor-controlled air motor maintains tool RPM under heavy load. Over-speed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less down-time.
  • Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. Includes safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2″ (13 mm) diameter is recommended.
  • Model accepts optional Type 11 Cup Wheels, 6″ (152 mm) diameter. Wheel NOT included with tool. Covers more area in less time!
  • Technical specifications
  • Data sheets and spare parts
Model number5323353243
Type 11 Cup Grinding Wheel Dia. mm (Inch)6″ (152)6″ (152)
hp (W)2 (1,491)2 (1,491)
Free Speed RPM60006000
Spindle Thread5/8″-11 Male5/8″-11 Male
Exhaust TypeRotational Side ExhaustRotational Side Exhaust
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)80 (2,265)87 (2,464)
Hose I.D. Size Inch (mm)1/2″ (13)1/2″ (13)
Length Inch (mm)9.5″ (241)9.5″ (241)
Height Inch (mm)7″ (178)7″ (178)
Air Inlet Thread1/2″ NPT1/2″ NPT
Item Weight4.76 kg5.03 kg
Operating instructions and spare parts list Dynabrade compressed air angle grinder 53233 (PDF)
Operating instructions and spare parts list Dynabrade compressed air angle grinder 53243 (PDF)
