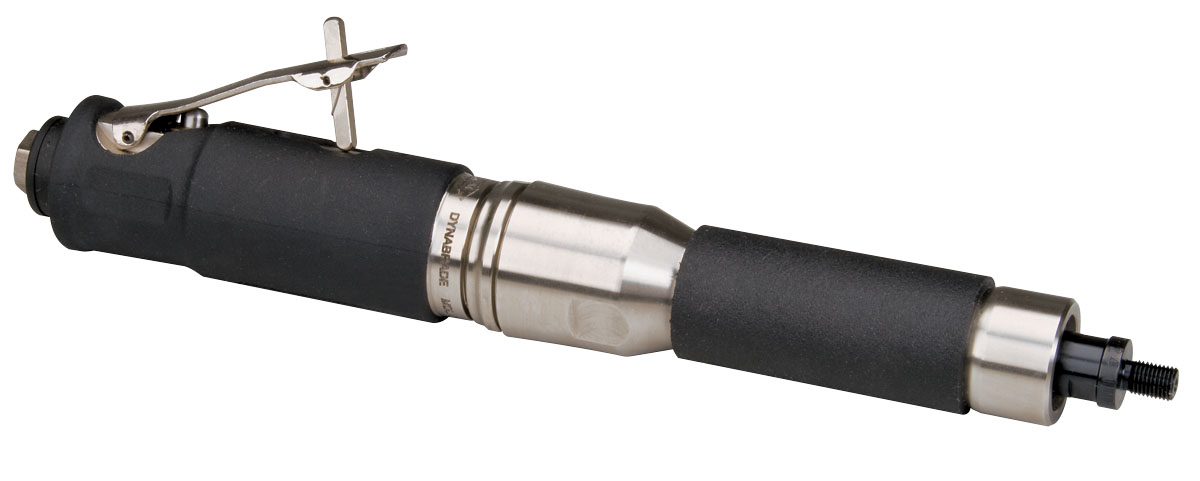

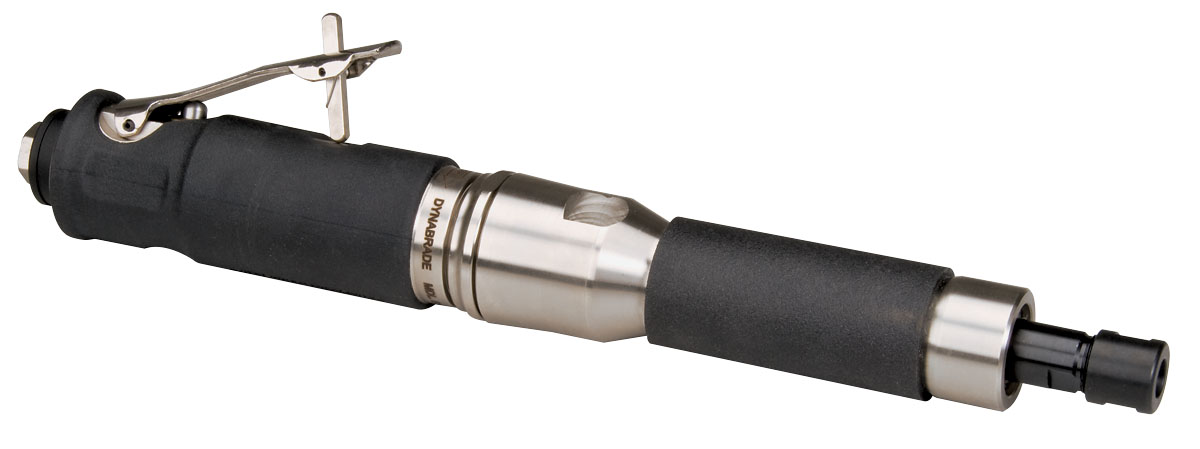

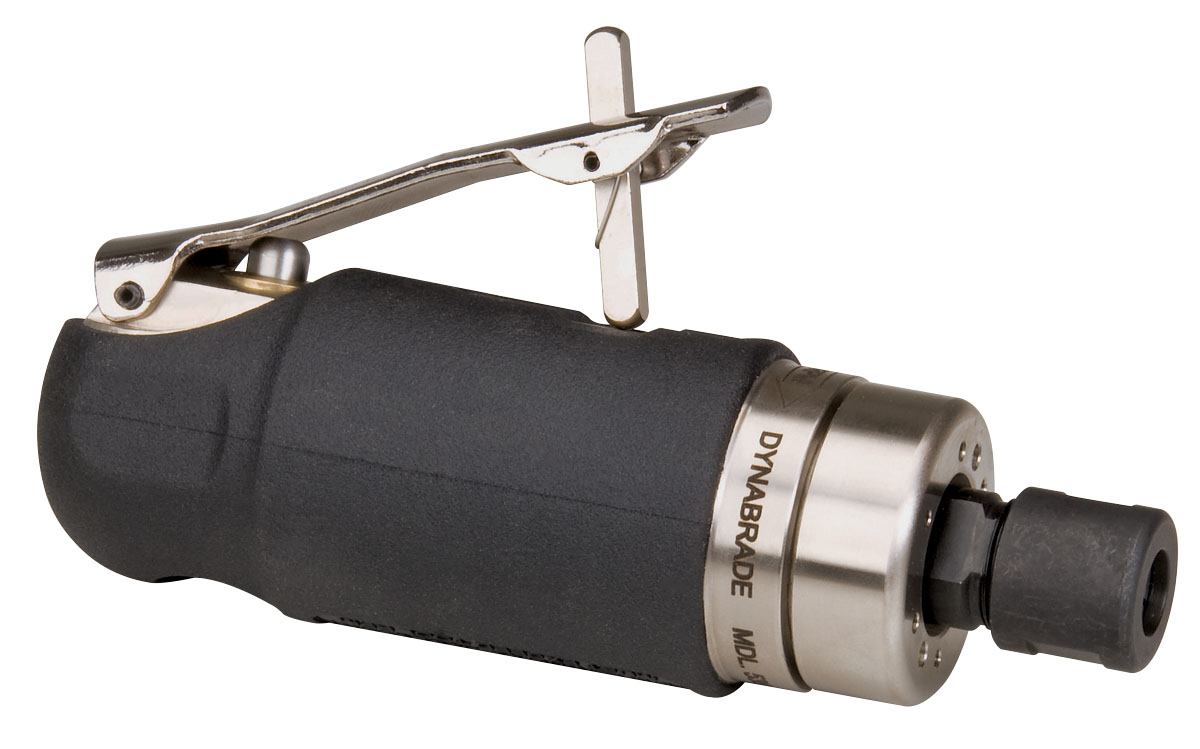

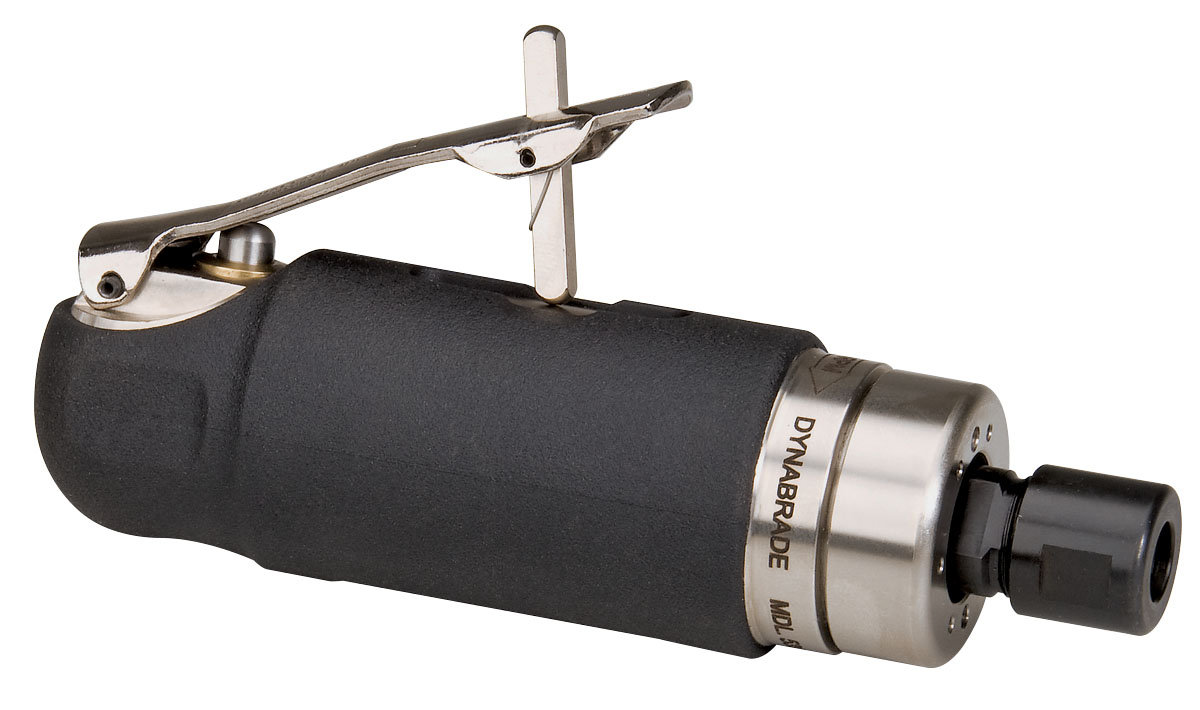

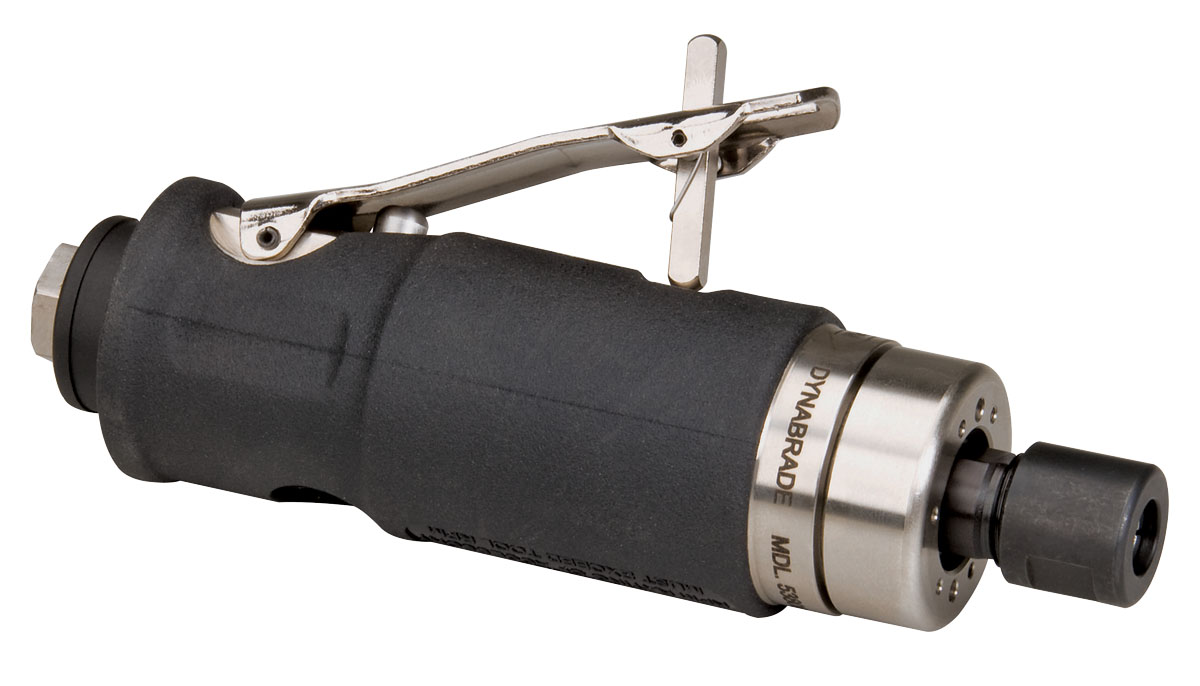

Steel Housing Die Grinders Dynabrade 53807, 53808, 53811, 53812, 53781, 53783
- Technical specifications
- Data sheets and spare parts
| Model number | 53807 | 53808 | 53811 |
| Collet size | 1/4″ | 1/4″ | 1/4″ |
| Motor hp (W) | .5 (373) | .5 (373) | .5 (373) |
| Motor RPM | 24,000 | 24,000 | 24,000 |
| Exhaust | Front | Rear | Front |
| Max. Air Flow SCFM (LPM) | 30 (850) | 29 (821) | 37 (1048) |
| Air inlet thread | 1/4″ NPT | 1/4″ NPT | 1/4″ NPT |
| Hose inner diameter Inch (mm) | 3/8″ (10) | 3/8″ (10) | 3/8″ (10) |
| Length Inch (mm) | 5-5/8″ (143) | 6-11/16″ (170) | 6-1/8″ (156) |
| Height Inch (mm) | 1-3/4″ (45) | 1-3/4″ (45) | 1-3/4″ (45) |
| Sound Level dB(A) | 82 | 77 | 83 |
| Machine vibration peaks ISO8662 (m/s²) | 2.2 | 2.1 | 2.4 |
| Weight | 0.86 kg | 0.95 kg | 1 kg |
- Technical specifications
- Data sheets and spare parts
| Model number | 53812 | 53781 | 53783 |
| Collet size | 1/4″ | 1/4″ | 3/8″-24 Male |
| Motor hp (W) | .7 (522) | .7 (522) | .7 (522) |
| Motor RPM | 20,000 | 20,000 | 20,000 |
| Exhaust | Front | Rear | Rear |
| Max. Air Flow SCFM (LPM) | 38 (1,076) | 39 (1,104) | 39 (1,104) |
| Air inlet thread | 1/4″ NPT | 1/4″ NPT | 1/4″ NPT |
| Hose inner diameter Inch (mm) | 3/8″ (10) | 3/8″ (10) | 3/8″ (10) |
| Length Inch (mm) | 7-1/4″ (184) | 13.6 (346) | 12.7 (322) |
| Height Inch (mm) | 1-3/4″ (45) | 1-3/4″ (45) | 1-3/4″ (45) |
| Sound Level dB(A) | 79 | 80 | 80 |
| Machine vibration peaks ISO8662 (m/s²) | 2.5 | 2.4 | 2.1 |
| Weight | 1.04 kg | 1.79 kg | 1.72 kg |
