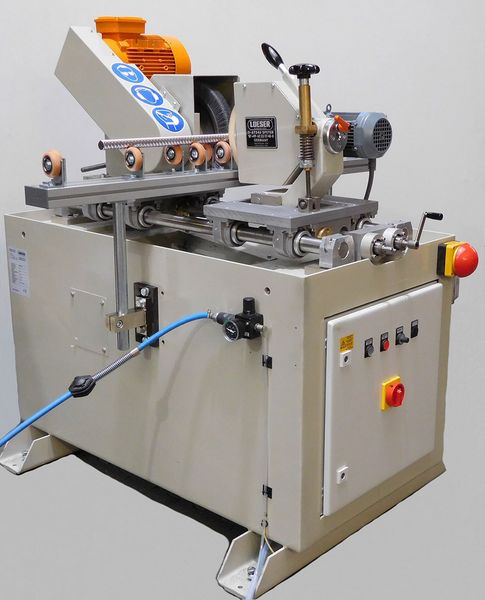

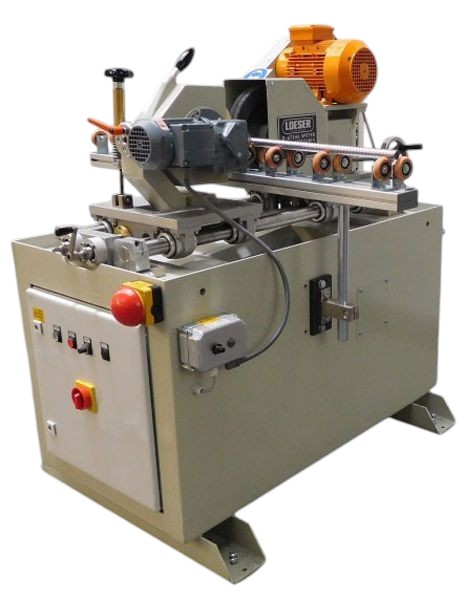

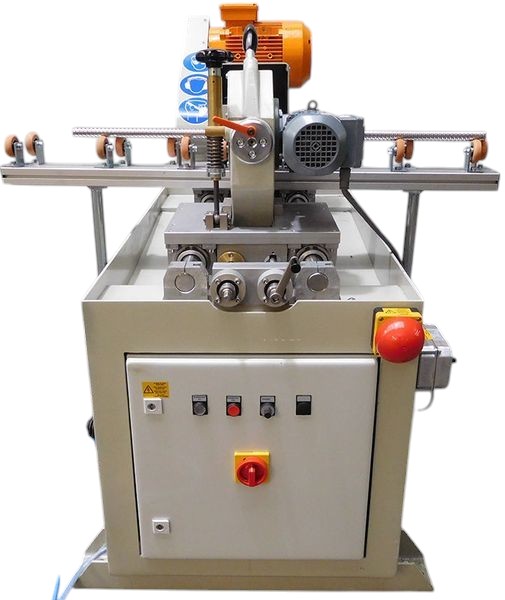

Polishing and deburring machine, type KSP 100

Tube polishing machine with swivelling polishing head, type KSP 100

• Welded frame with built-in dust suction in the machine base
• Polishing head can be swivelled in both directions for best polishing and deburring results
• Wheel dimensions: 300 x 100 mm
• Pinch roll width 75 mm, optional 100 mm
• Diameter range: 10 – 150 mm
• Work piece lengths according to the guide system and work piece weight
• Motor capacity: 3.0 kW, frequency controlled
• Pinch roll gear: 0.37 kW, frequency controlled
• Electric system integrated in the machine frame
• Optional: paste spray gun system including tank

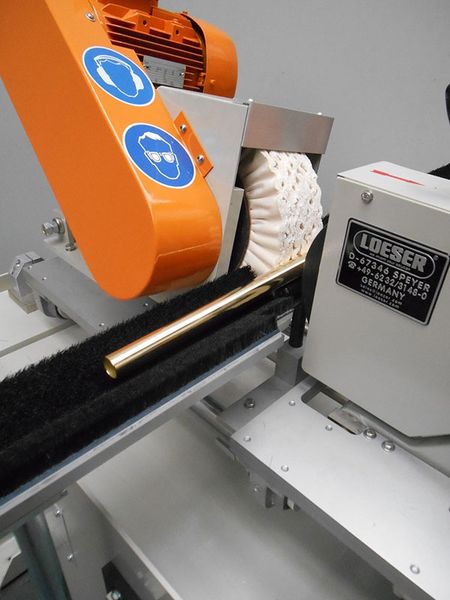

Polishing head with special, cantileverd drive shaft for fast changing between sisal wheels, polishing wheels, non-woven wheels or rubber bonded wheels. Angle setting via spindle.

Video polishing and deburring machine, type KSP 100

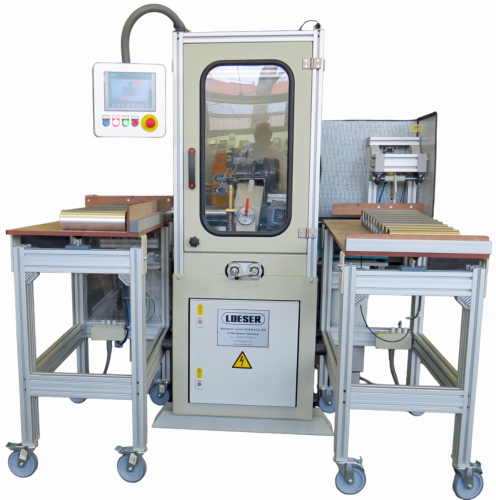

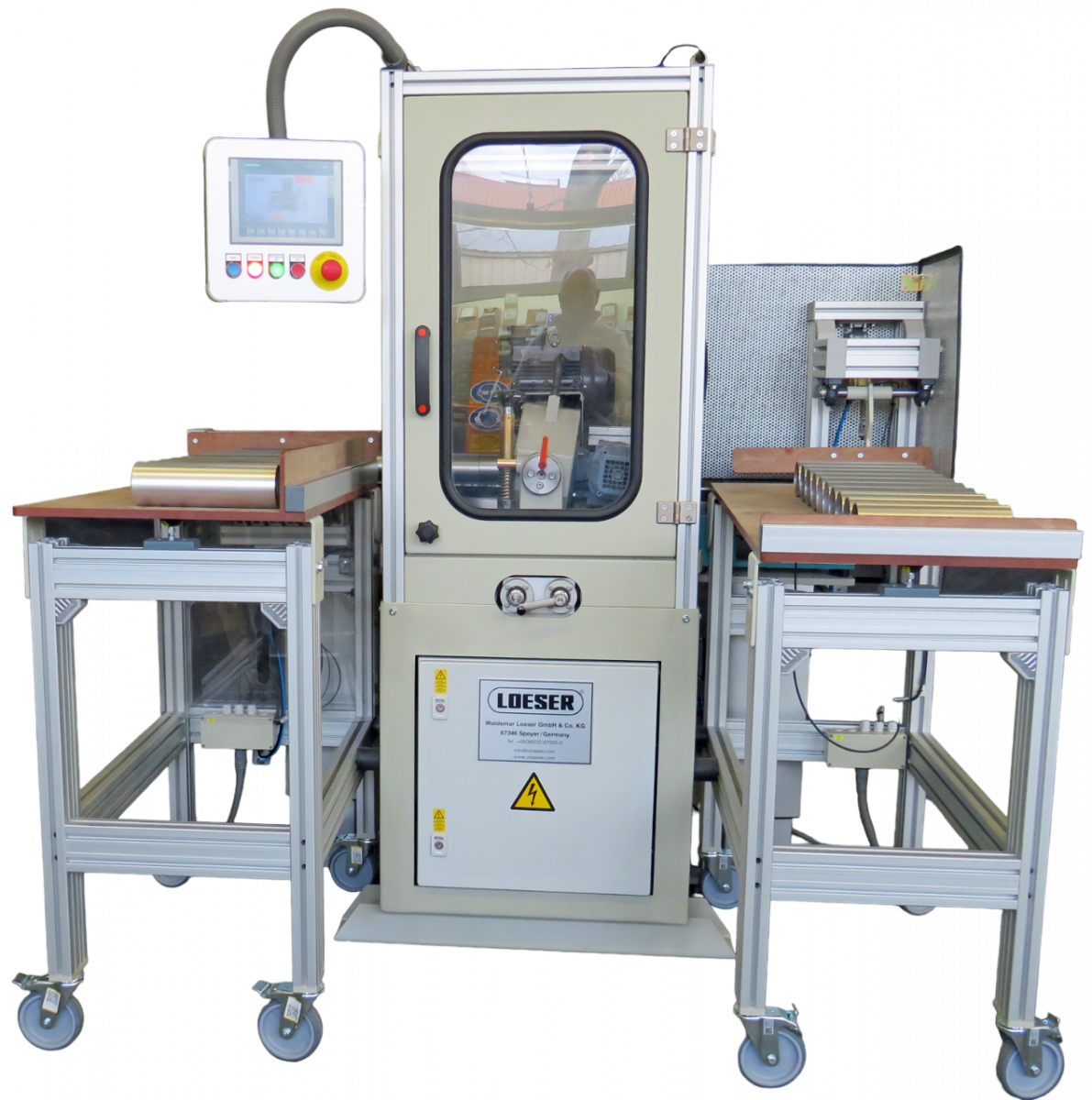

Customised models
