Vertical Disc Sander Dynabrade 53251, 53252, 53253

Vertical Disc Sander Dynabrade 53251, 53252, 53253

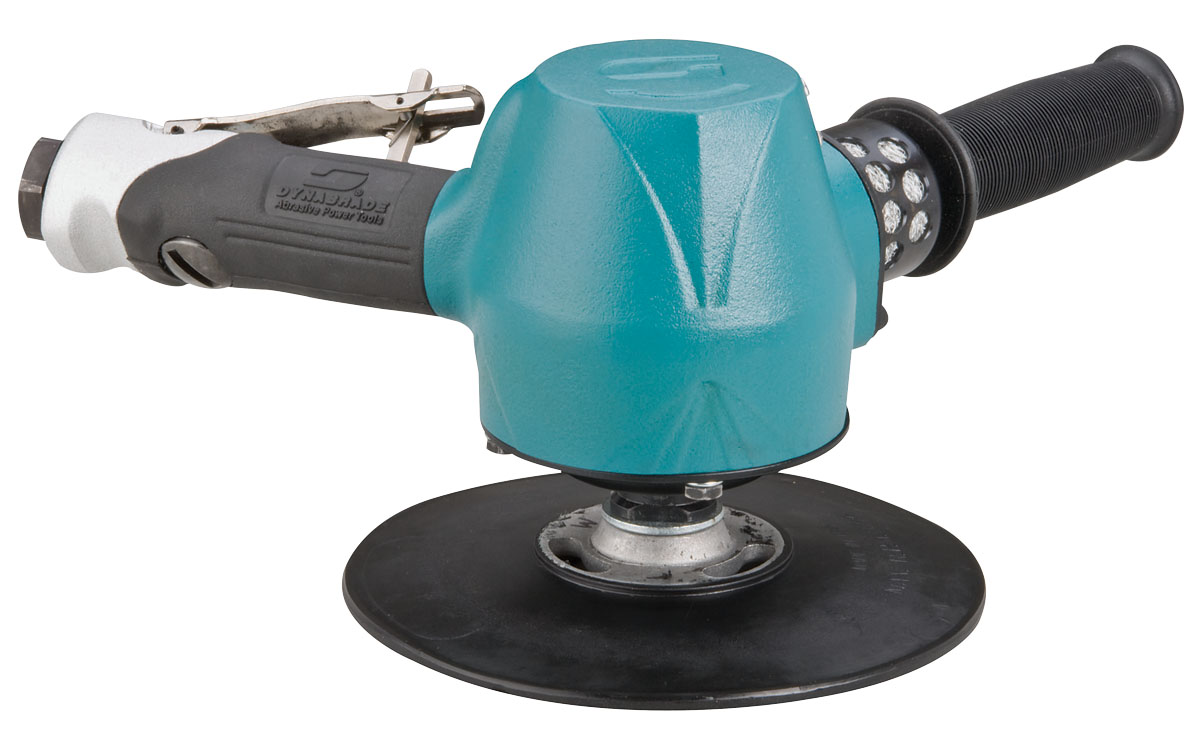

  • Dynabrade 7″ (178 mm) Dia. Vertical Disc Sanders are ideal for grinding on these materials or applications; Sheet Metal, Fiberglass, Composites, Carbon Fiber Sand, Deburr Metal Parts, Surface Condition, Remove Mill Finish Finish Aluminum, Remove Paint & Rust.
  • Governor-controlled air motor maintains tool RPM under heavy load. Overspeed shut-off feature ensures maximum operator safety. Motor is gearless with less wearable parts, ensuring reduced maintenance and less downtime.
  • Insulated tool handle minimizes cold air transmission to the hand. Handle position is adjustable for operator comfort. All models include safety-lock throttle lever. For peak performance, use of optional 95870 Air Hose-1/2″ (13 mm) diameter is recommended.
  • Each model includes 50283 Backup Pad, 7″ (178 mm) in diameter. Covers more area in less time! Pad accepts 7″ (178 mm) diameter abrasive discs with 7/8″ (22.23 mm) center hole, sold separately.
  • Technical specifications
  • Data sheets and spare parts
Model number532515325253253
Backing Pad Diameter Inch (mm)7″ (178)7″ (178)7″ (178)
hp (W)2 (1,491)2 (1,491)2 (1,491)
Free Speed RPM600072008500
Tool Spindle Thread5/8″-11 Male5/8″-11 Male5/8″-11 Male
Exhaust TypeRotational Side ExhaustRotational Side ExhaustRotational Side Exhaust
Max. Air Flow @ 90 PSIG: SCFM (L/Min.)80 (2,265)87 (2,464)84 (2,379)
Hose I.D. Size Inch (mm)1/2″ (13)1/2″ (13)1/2″ (13)
Length Inch (mm)9.4″ (240)9.4″ (240)9.4″ (240)
Height Inch (mm)3-9/16″ (90)3-9/16″ (90)3-9/16″ (90)
Noise dB(A)5.8″ (148)5.8″ (148)5.8″ (148)
Air Inlet Thread1/2″ NPT1/2″ NPT1/2″ NPT
Item Weight3.58 kg3.58 kg3.58 kg
Operating instructions and spare parts list Dynabrade compressed air angle grinder 53251, 53252, 53253 (PDF)
